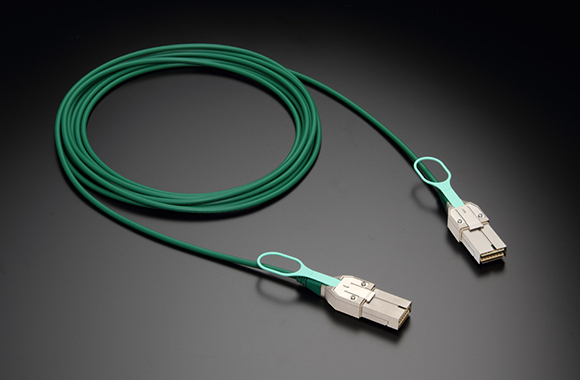

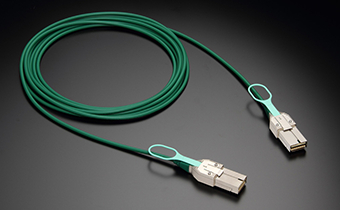

광 액티브 케이블

광·전기 변환부와 광 섬유 케이블이 일체화된 광 액티브 케이블. 서버나 스토리지 등의 정보 통신 간을 연결해 데이터센터의 처리능력 향상에 기여합니다.

사양

사양
Parameter	Target Specification
Power consumption Per End	.9 Watt, typical
Connector	CXP with power, 84 Pin double card edges
Channels	12 Channel, Duplex
Data Rate	Up to 120 Gbit/s (10 Gbit/s/ch) Tri-rate capable: InfiniBand SDR, DDR, QDR
Latency (e-o-e conversions only)	600 ps (typical)
Skew (max between 12 channels)	40 ps (without fiber)
Operating Temperature	0-70 degC
Storage temperature	-40 to 85 degC
Storage Humidity	5-95% RH, non-condensing
Supply Voltages	+3.3 V
Link Bit Error Rate	< 10^-15
Data I/O	Differential AC-Coupled CML
Hot Pluggable	Yes
Cables types available	1. LSZH (OFNR) 2. OFNP
Compliance	NFPA 262 RoHS UL 1666 UL 60950-1	Class 1M laser product; Even if cable is cut FCC/EN55022(2006) Class B ESD: jedec HBM/MM, IEC 61000-4-2
Weight For 10-Meter Cable Assembly	< 300 grams typical
Cable Cross Section (without connector)	4.5 mm
Tensile Strength	> 98 N
Cable length	Up to 100 m
Minimum Cable Bend Radius A) Exposed Connector Plus Cable 65 mm B) Cable Near Connectors 30 mm C) Central Section of Cable 100 mm
